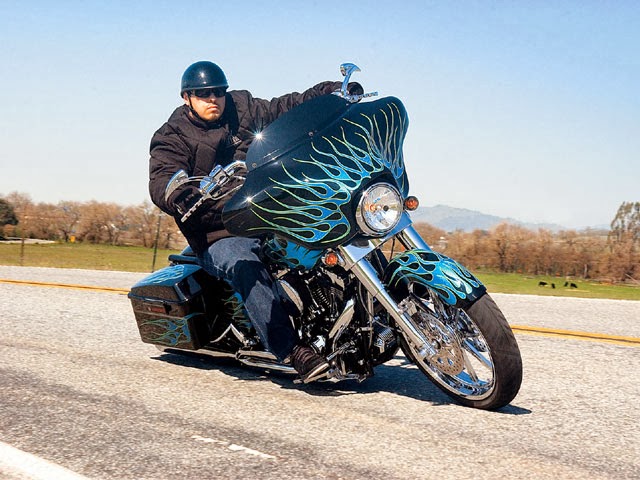

| Harley Davidson FLHX Street Glide 2007 |
Harley Davidson Street Glide is one of the models of motorcycles manufactured by Harley Davidson. Street glide got a good place in the hearts of consumers. With luxurious design and ferocious, and comfort while driving really makes the wearer proud.
Harley Davidson has revamped its lineup of touring models and has
named the entire operation Project Rushmore. Like you’d probably
guessed, the Street Glide Special wasn’t forgotten and the bike received
its share of upgrades for 2014.
 | ||||
| Harley Davidson FLHX Street Glide Special 2014 |
 |
| 2014 Harley Davidson FLHX Street Glide Special |
In terms of power, the 2014
Harley Davidson Street Glide Special is equipped with a revised
air-cooled, high output Twin Cam 103 engine. The upgraded engine
delivers a stronger low end torque and feels more refined than the
previous version. Fire it up and it will reward you with a peak torque
of 104.7 ft-lb at 3,250 rpm and a combined fuel economy of 42 mpg. All
its power is transferred to the rear wheel through a six speed cruise
drive transmission.
As far as comfort is concerned, the 2014
Harley Davidson Street Glide Special has all it needs to deliver a
relaxed riding position. Harley has gone over the top with its
improvements and re-worked every detail improving the airflow, heat
management, seat textures, leg room and hand controls to be sure that
its new Street Glide Special can fully satisfy its owner.
 |
Harley Davidson FLHX Street Glide Features:
Engine:
Engine3 Air-cooled, Twin Cam 96
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump
drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
- 1st 9.593
- 2nd 6.650
- 3rd 4.938
- 4th 4.000
- 5th 3.407
- 6th 2.875
Chassis:
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged juctions; MIG welded
Front Forks 41.3 mm telescopic, triple circuit damping
Rear Shocks Short, air-adjustable
Wheels5: Black, Slotted Disc Cast Aluminum
- Front 18 in. x 3.50 in. (457.20 mm x 88.90 mm)
- Rear 16 in. x 5 in. (406.40 mm x 127.0 mm)
Brakes:
- Caliper Type 32 mm, 4-piston fixed front and rear
- Rotor Type (diameter x width): Patented, fixed rotors
- Front (dual) 11.81 in. x .20 in. (299.97 mm x 5.08 mm)
- Rear 11.81 in. x .28 in. (299.97 mm x 7.11 mm)
- Anti-Lock Braking System (option) Available
Suspension Travel:
- Front Wheel 4.60 in. (116.84 mm)
- Rear Wheel 2 in. (50.80 mm)
Performance:
Engine Torque6 (per SAE J1349):
- North America 92.60 ft. lbs. @ 3500 rpm (125.55 Nm @ 3500 rpm)
-Lean Angle (per SAE J1168):
- Right 32°
- Left 29°
Fuel Economy7:
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)
Electric:
-Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
-Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
-Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
- Tail/Stop Lights 8W/28W (5W/21W)
- Turn Signal Lights 28W (21W) self-canceling
- Indicator Lamps High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
Dimensions:
-Length 95.0 in. (2413.0 mm)
-Overall Width 38.0 in. (965.20 mm)
-Overall Height 52.20 in. (1325.88 mm)
Seat Height:
- Laden2 26.30 in. (668.02 mm)
- Unladen 27.30 in. (693.42 mm)
-Ground Clearance 4.70 in. (119.38 mm)
-Rake (steering head) 26°
-Fork Angle 29.2°
-Trail 6.69 in. (169.93 mm)
-Wheelbase 63.50 in. (1612.90 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
- Front - D408F BW 130/80B18 63H
- Rear - D407 BW 180/65B16 81H
Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1 gal.)
Oil Capacity (w/filter) 4 qts. (3.78 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity 1.40 qts. (1.32 L)
Weight:
- As Shipped 773 lbs. (350.63 kg)
- In Running Order 810 lbs. (367.42 kg)
- Gross Vehicle Weight Rating 1360 lbs. (616.90 kg)
- Gross Axle Weight Rating
- Front 500 lbs. (226.80 kg)
- Rear 927 lbs. (420.49 kg)
Color Options Solids:
- Vivid Black
- Scarlet Red
- Brilliant Silver Pearl
- Black Denim
- Red Hot Sunglo
